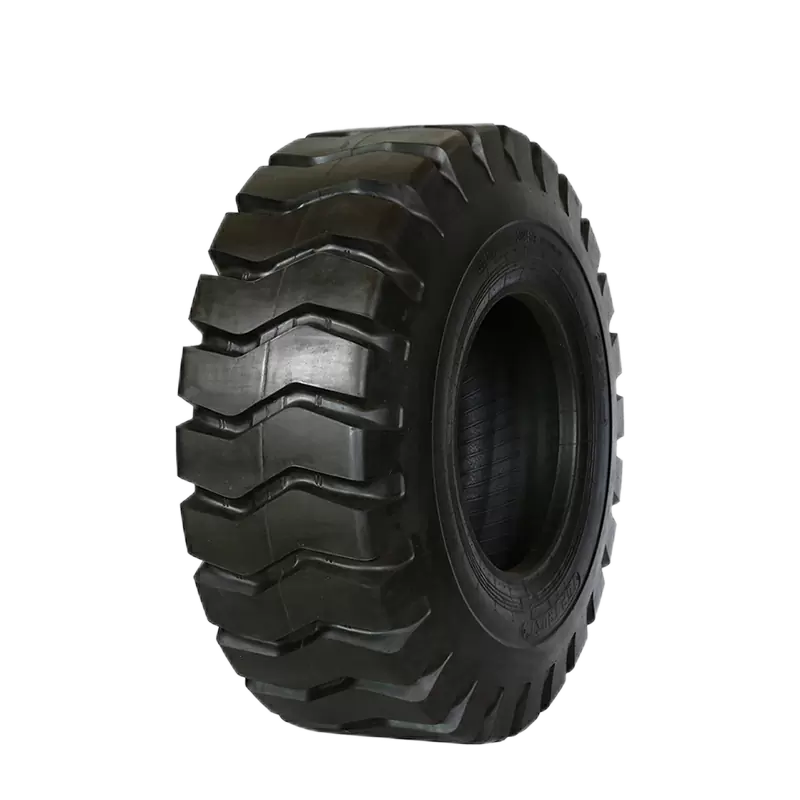

Bias Tube & Tubeless OTR Tires E3/L3

Bias Tube Tubeless OTR Tires E3/L3 tread design, built for reliable traction, durability, and long service life in demanding earthmoving operations.

Features and Characteristics

E3/L3 deep tread pattern
Provides strong traction and effective self-cleaning on loose, rocky, and muddy surfaces.
Reinforced bias carcass structure
Enhances load capacity, impact resistance, and overall operational stability.
Cut- and heat-resistant rubber compound
Reduces tread damage and heat build-up, extending tire service life in harsh working conditions.
Wide tread face design
Improves ground contact and helps deliver even wear during heavy-duty operations.

Info Product

Category: OTR

Description
Reviews (0)

Description

Technical Specifications

Technical specifications of Bias Tube & Tubeless OTR Tires E3/L3 are listed below.

Pattern	Size	Ply Rating	Standard Rim	Tire Type	Section Width	Overall Diameter	Max Load	Inflation Pressure	Speed	Tread Depth
Pattern	Size	Ply Rating	Standard Rim	Tire Type	mm	mm	kg	Kpa	(Km/h)	mm
E3/L3(SH312)	7.50-16	8	6.00G	TT/TL	215	810	1900	500	10	20
E3/L3(SH312)	8.25-16	10	6.50H	TT/TL	235	865	1800	550	10	20
E3/L3(SH312)	12.00-16	10	8.5	TT/TL	315	1020	1245	390	10/50	20
E3/L3(SH312)	14/90-16	10	8.5H	TT/TL	215	896	1200	270	10/50	16
E3/L3(SH312)	14.00-24	16	10.00/2.0	TT/TL	375	1370	7300/4000	550/375	10/50	24
E3/L3(SH312)	14.00-24	20	10.00/2.0	TT/TL	375	1370	8500/4625	700/475	10/50	24
E3/L3(SH312)	14.00-24	24	10.00/2.0	TT/TL	375	1370	9500/5150	850/575	10/50	24
E3/L3(SH312)	14.00-24	28	10.00/2.0	TT/TL	375	1370	10000/5600	925/650	10/50	24
E3/L3(SH312)	15.5-25	16	12.00/1.3	TT/TL	395	1275	6500/3750	525/325	10/50	24
E3/L3(SH312)	16.00-24	16	11.25/2.0	TT/TL	430	1495	8250/4875	425/325	10/50	26
E3/L3(SH312)	16.00-24	20	11.25/2.0	TT/TL	430	1495	9750/5450	550/400	10/50	26
E3/L3(SH312)	16.00-25	28	11.25/2.0	TT/TL	430	1495	11500/6700	750/575	10/50	28
E3/L3(SH312)	16.00-25	32	11.25/2.0	TT/TL	430	1495	12500/7300	875/650	10/50	28
E3/L3(SH312)	16.00-25	36	11.25/2.0	TT/TL	430	1495	13600/7750	975/725	10/50	28
E3/L3(SH312)	16/70-20	14	13(SDC)	TT/TL	410	1075	5150/2900	450/350	10/50	25
E3/L3(SH312)	16/70-20	18	13(SDC)	TT/TL	410	1075	5800/3350	550/450	10/50	25
E3/L3(SH312)	16/70-24	14	13(SDC)	TT/TL	410	1175	5600/3350	450/350	10/50	25
E3/L3(SH312)	16/70-24	18	13(SDC)	TT/TL	410	1175	6300/3880	550/450	10/50	25
E3/L3(SH312)	17.5-25	16	14.00/1.5	TT/TL	445	1350	7300/4250	475/300	10/50	25
E3/L3(SH312)	17.5-25	20	14.00/1.5	TT/TL	445	1350	8250/5000	575/400	10/50	25
E3/L3(SH312)	18.00-25	36	13.00/2.5	TT/TL	500	1615	16000/9250	850/625	10/50	28
E3/L3(SH312)	18.00-25	40	13.00/2.5	TT/TL	500	1615	17000/9750	950/700	10/50	28
E3/L3(SH312)	18.00-25	44	13.00/2.5	TT/TL	500	1615	18000/10300	1050/775	10/50	28
E3/L3(SH312)	20.5-25	20	17.00/2.0	TT/TL	520	1490	9500/6000	450/325	10/50	29
E3/L3(SH312)	20.5/70-16	12	10.00G	TT/TL	480	1070	2185/1890	300/250	10/50	25
E3/L3(SH312)	23.5-25	20	19.50/2.5	TT/TL	595	1615	10900/7300	375/300	10/50	31
E3/L3(SH312)	26.5-25	24	22.00/3.0	TT/TL	675	1750	14000/9250	400/300	10/50	35
E3/L3(SH312)	29.5-25	28	25.00/3.5	TT/TL	750	1875	17500/11500	425/325	10/50	36

Applications

Designed for loaders, dump trucks, and earthmoving equipment operating on rocky, muddy, and unpaved surfaces.
